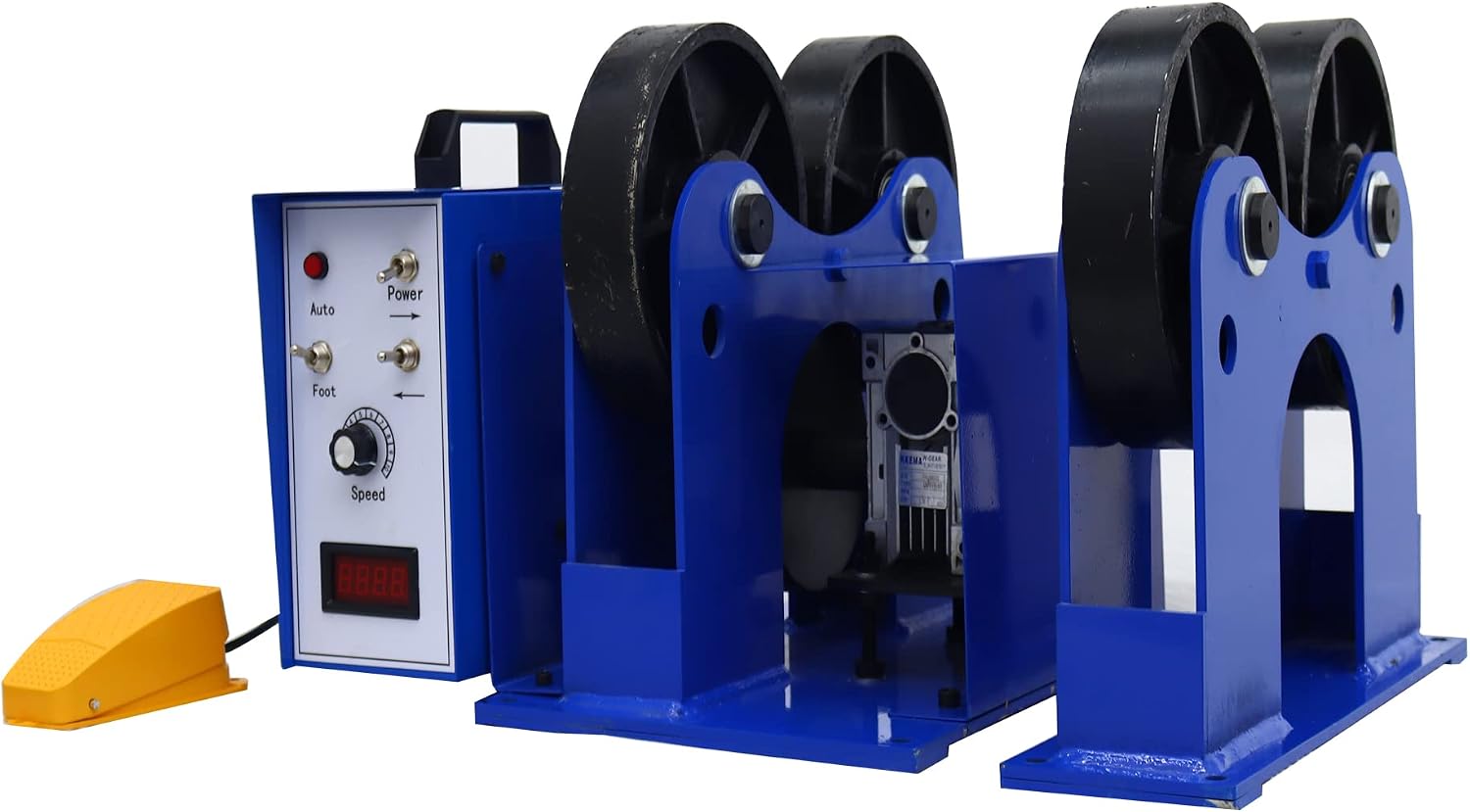

110V Tank Turning Welding Rolls Linkage Roller, Rotary Welding Positioner with 0.8"-32" Working Diameter Adjustable, 2200 LB Loading Capacity, for Welding Equipment Support, PU Rollers
4.8 (18 items)
Limited Time SaleUS$551.40 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 222702132 | Release Date | 2026/05/04 | List Price | US$367.60 | Model Number | 222702132 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- STURDY CONSTRUCTION: Turning rolls linkage roller has rugged construction for 1000KG/2200 LB load capacity. The surface of the 4 rollers is covered with a layer of polyurethane (PU) material, so that the contact surface of the wheel and the workpiece maintains a greater friction.
- ADJUSTABLE DIAMETER: This tank turning rolls can be suitable for workpieces with a diameter of 20-800mm/0.8"-32". The installation position of the rollers can be adjusted. Inner Hole: 20-200mm; Outside Hole: 200-800mm .
- ADJUSTABLE WORKING SPEED: The speed of rotation can be adjusted as working required, and the speed will be displayed by numbers. Speed Range: 80～1101mm/min; This speed is the linear velocity. The wheels can rotate forward and backward.
- 2 OPERATION MODE: The welding turning rolls is equipped with a foot switch, you can select the auto mode, then the wheel will keep rotating at the set speed; you can also select the foot mode, through the foot switch, the wheels can rotate in a small ran, so that the workpiece can move slightly or fine-tuned.
- APPLICATION: Tank Turning Welding Rolls can realize the horizontal position welding of the inner and outer circumferential seam and inner and outer longitudinal seam of the workpiece, and the matching automatic welding equipment can realize automatic welding, which can greatly improve the welding quality, reduce the labor intensity and improve the work efficiency.
| Size | 20-800mm/0.8"-32" |
|---|---|
| Voltage | 110 Volts |
| Wattage | 120 watts |
| Material | PU Rollers |
| Item Weight | 186 pounds |
| Part Number | LA022454 |
| Manufacturer | PreAsion |
| Power Source | corded-electric |
| Package Dimensions | 26 x 24 x 22 inches |
| Item Package Quantity | 1 |
| Maximum Weight Capacity | 2200 Pounds |
| Is Discontinued By Manufacturer | No |
