Flat Flexible Cable with Steel Wire 2/3/4/5 Core 16/14/12 AWG, Oil Resistant High Flex Power Cable 300/500V for Sliding Gate Elevator Air Conditioner Automation Equipment(14AWG(2.5mm²),100FT_5C)

Product ParametersProduct Name: TVVB Elevator Matching Flat CableRated Voltage: 300V/500VRated Temperature: -15℃~ +80℃Core Material: Oxygen-free pure copperInsulation Material: PVC high-flexibility insulation materialProduct Characteristics: Oil-resistant, bend-resistant, good toughness, wear-resistant, cold-resistant, flame-retardant, aging-resistant, high-temperature resistant, etc.Application Fields: Suitable for overhead cranes, grab cranes, electric sliding gates, electroplating machines, vertical elevators, lifts, etc.Specifications:2*1.5mm²: Conductor structure: 48 strands of exposed oxygen-free copper wire, 0.2mm diameter, twisted together. Thickness: 4.9mm. Width: 14.2mm2*2.5mm²: Conductor structure: 80 strands of exposed oxygen-free copper wire, 0.2mm diameter, twisted together. Thickness: 5.6mm. Width: 17.8mm2*4.0mm²: Conductor structure: 80 strands of exposed oxygen-free copper wire, 0.25mm diameter, twisted together. Thickness: 6.2mm. Width: 19mm3*1.5mm²: Conductor structure: 48 strands of exposed oxygen-free copper wire, 0.2mm in diameter, twisted together. Thickness: 4.9mm. Width: 17.9mm3*2.5mm²: Conductor structure: 80 strands of exposed oxygen-free copper wire, 0.2mm in diameter, twisted together. Thickness: 5.6mm. Width: 24.4mm3*4.0mm²: Conductor structure: 80 strands of exposed oxygen-free copper wire, 0.25mm in diameter, twisted together. Thickness: 6.2mm. Width: 24.2mm4*1.5mm²: Conductor structure: 48 strands of exposed oxygen-free copper wire, 0.2mm in diameter, twisted together. Thickness: 4.9mm. Width: 22mm4*2.5mm²: Conductor structure: 80 strands of exposed oxygen-free copper wire, 0.2mm in diameter, twisted together. Thickness: 5.6mm. Width: 27mm4*4.0mm²: Conductor structure: 80 strands of bare oxygen-free copper wire, 0.25mm in diameter, twisted together. Thickness: 6.2mm. Width: 29.4mm5*1.5mm²: Conductor structure: 48 strands of bare oxygen-free copper wire, 0.2mm in diameter, twisted together. Thickness: 4.9mm. Width: 25.3mm5*2.5mm²: Conductor structure: 80 strands of bare oxygen-free copper wire, 0.2mm in diameter, twisted together. Thickness: 5.6mm. Width: 31mm5*4.0mm²: Conductor structure: 80 strands of bare oxygen-free copper wire, 0.25mm in diameter, twisted together. Thickness: 6.2mm. Width: 34.6mm

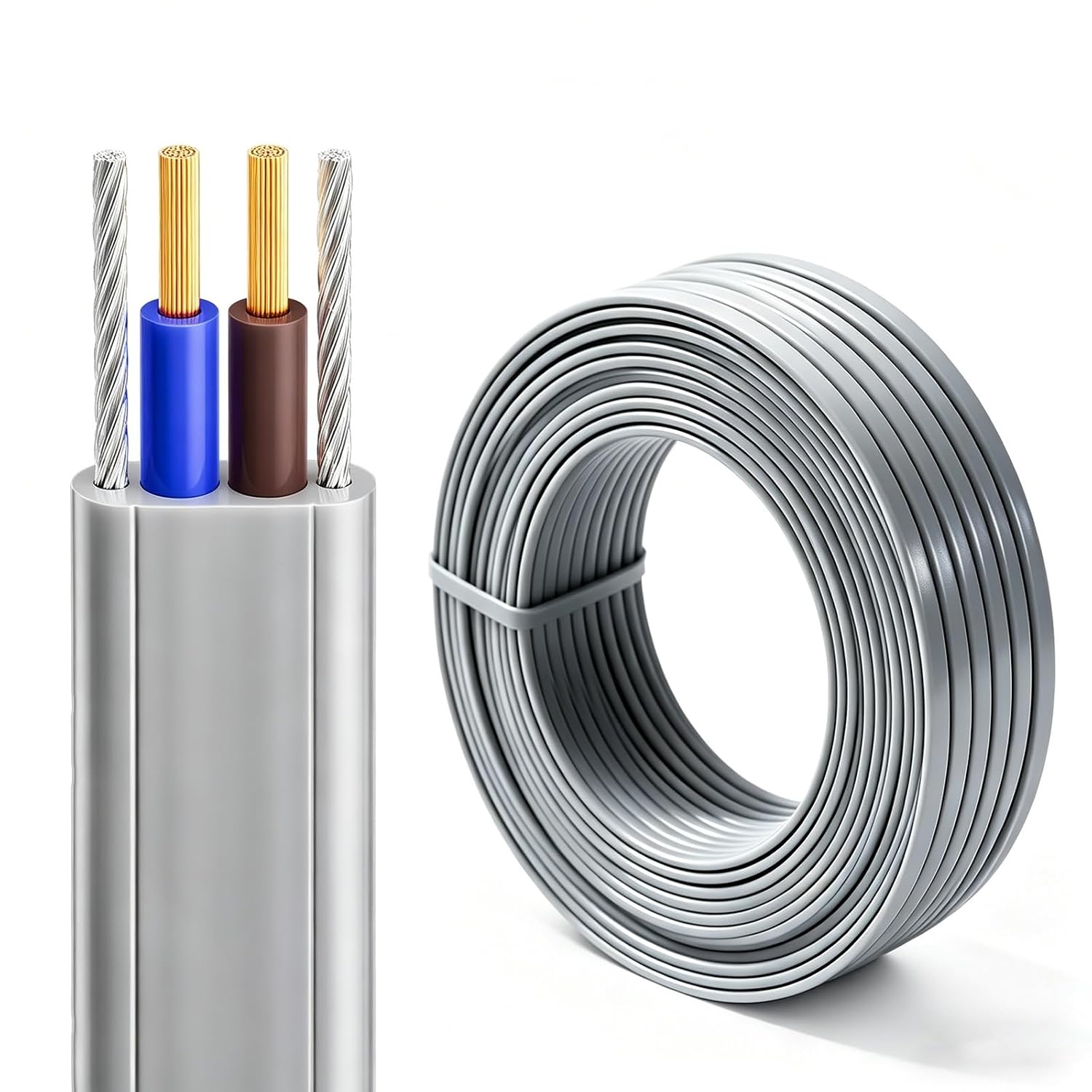

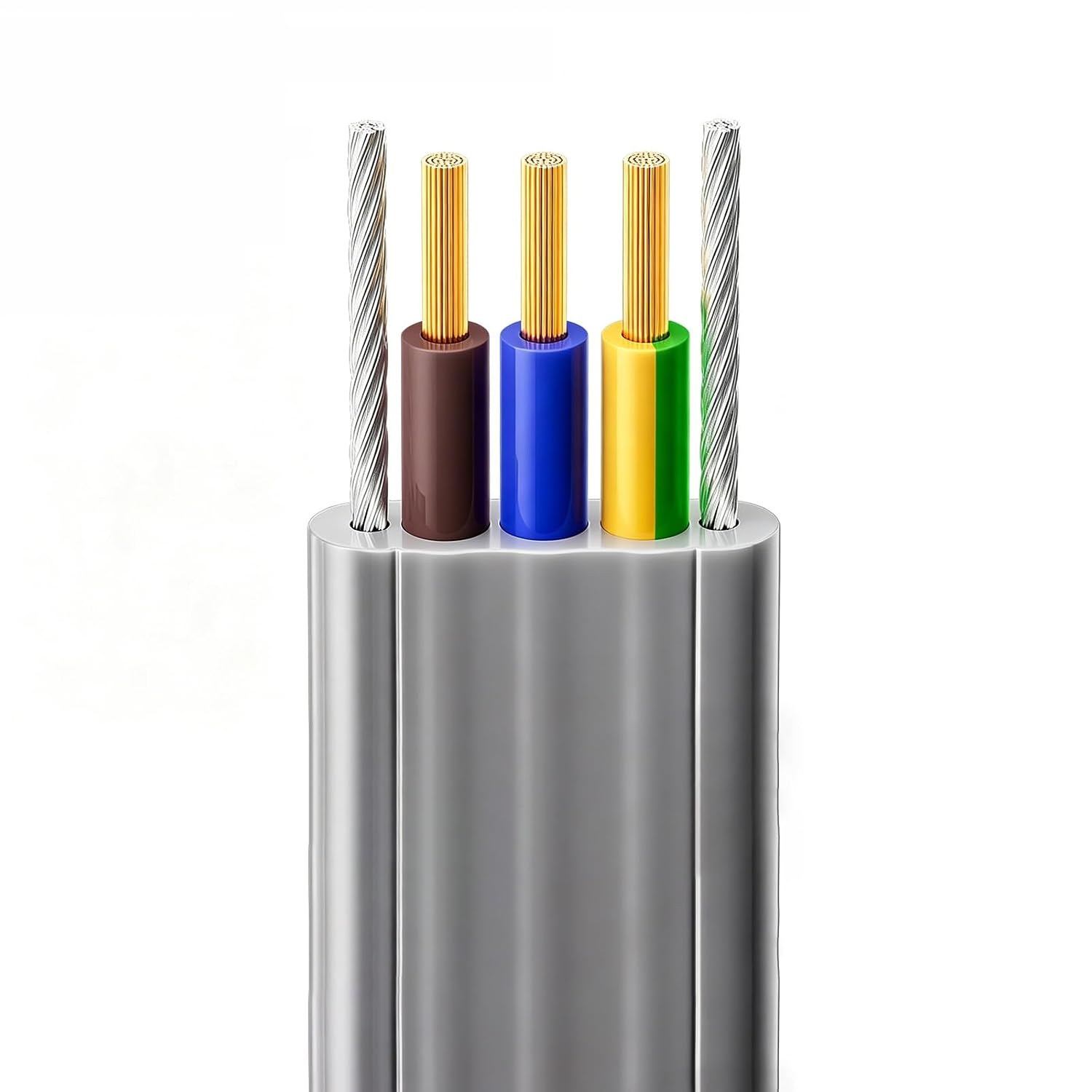

• Multi-Core Options with Steel Wire Support：This TVVB flat flexible cable is available in 2/3/4/5 core configurations with 1.5 /2.5/4.0mm² conductors, rated for 300/500V. Built-in steel wire reinforcement enhances tensile strength, making it suitable for moving and lifting applications such as elevators and automation equipment.
• Durable Copper Conductor & Flexible PVC Jacket：Constructed with high-conductivity copper conductors and a flexible PVC outer jacket, this flat cable offers good resistance to bending and wear. The flexible structure helps maintain stable performance in environments with frequent movement
• Stable Power Transmission Performance：The copper core provides efficient conductivity for consistent power delivery. Designed for stable operation in low to medium voltage systems, helping reduce energy loss during long-term use.
• Designed for Moving Equipment Applications：Suitable for a wide range of applications including elevator systems, sliding gate motors, cranes, air conditioning units, and automation equipment. Also ideal for drag chain systems and mobile power connections
• Quality Tested for Reliable Use：Each cable is tested for electrical performance and flexibility before shipment to help ensure consistent quality. Designed to support long-term use in industrial and commercial environments
